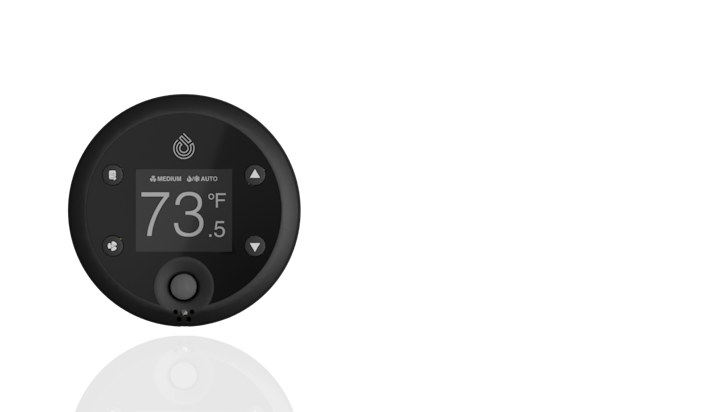

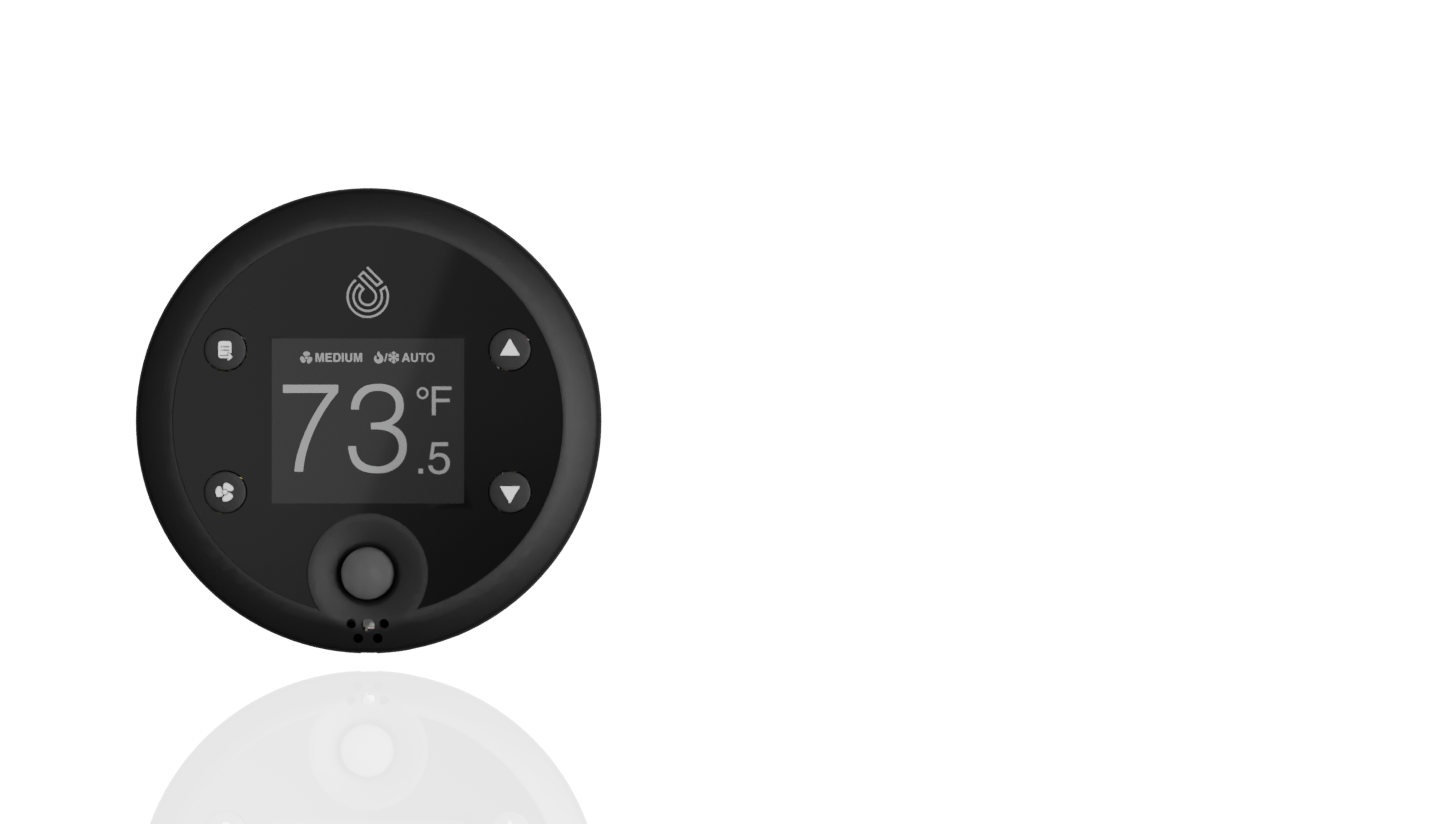

75F® MyStat

A SMARTER, SIMPLER WAY TO DELIVER ZONE CONTROL FOR SINGLE OR TWO-STAGE EQUIPMENT.

Dimensions

3-3/8” Diameter x 1-1/4” Depth

86mm Diameter x 32mm Depth

Mounting

Wall mount

Screen

LCD, 1.8"

Inputs

(1) Universal input which can accept Thermistor (NTC 10K Type 2), 0-10VDC, or Dry Contact. Can be configured as: Supply Air Temp, Generic Alarm NO or NC, Key Card Sensor, or Door/Window Sensor.​

Outputs

A.(1) 0-10V DC

B.(3+2*) relays rated at 0.3A, 120V ac or 1.0A, 24 V ac/dc resistive load

*Part of universal outputs

Temperature

Operating range between 32°F – 122°F (0 – 50°C); typical accuracy of +/- 1 °F or 0.5°C

Humidity

Sensing range between 0 to 100%RH; Typical accuracy of

+/- 2% RH

Occupancy

Passive Infra Red (PIR) with detection range of 4m with 110 -degree angle

CO2

400 - 5000ppm

± 50ppm accuracy± 2.5% measured value up to 400 - 1000ppm

± 50ppm accuracy ± 3% measured value up to 1001 - 2000 ppm

Bluetooth

Bluetooth (BLE 5.1) for commissioning, location analysis or communication to wireless sensors*

Wireless Mesh

906-924 MHz IEEE 802.15.4-compliant for communication to CCU

868.3MHz IEEE 802.15.4-compliant for EU region

Wired

Industry standard RS485 for Modbus or BACnet. Mode – Server/Slave

Power

24V AC/DC (+/-15%) with nominal

power consumption of less than 0.3W

HyperStat

The world’s most advanced commercial thermostat & humidistat, with eight on-board IAQ sensors for hyper-localized control.

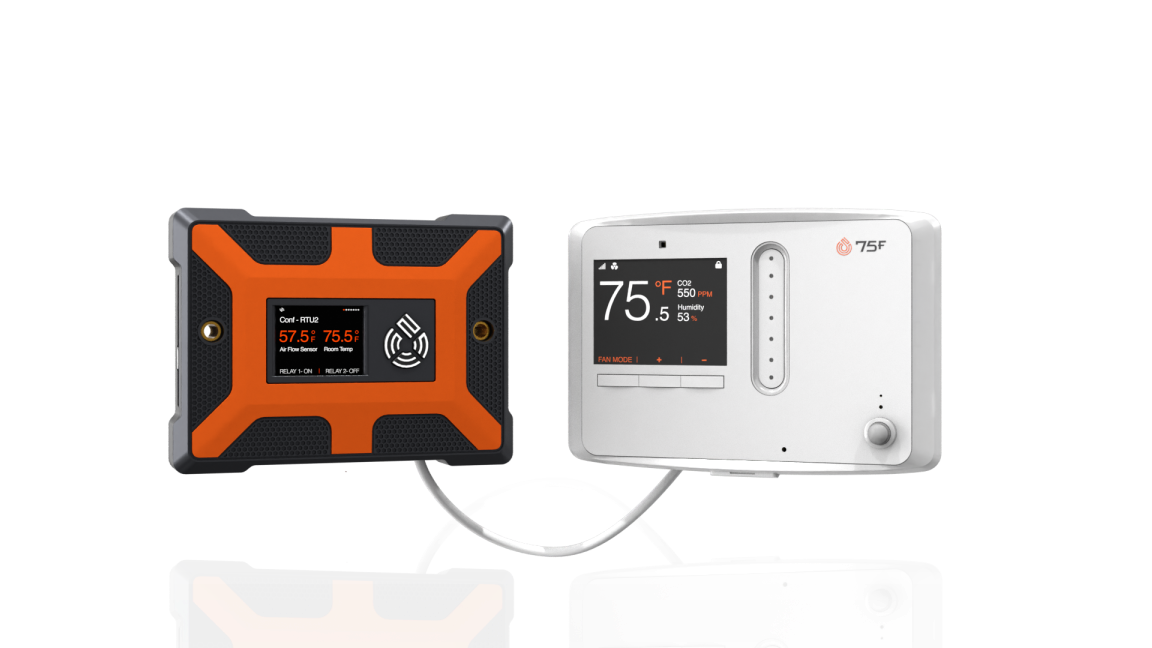

Smart Node
