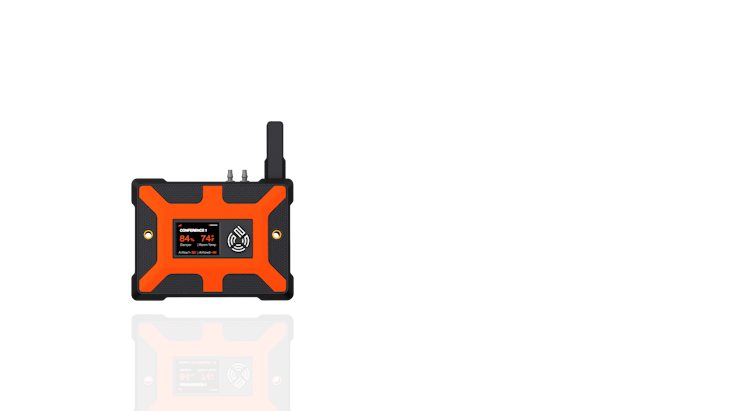

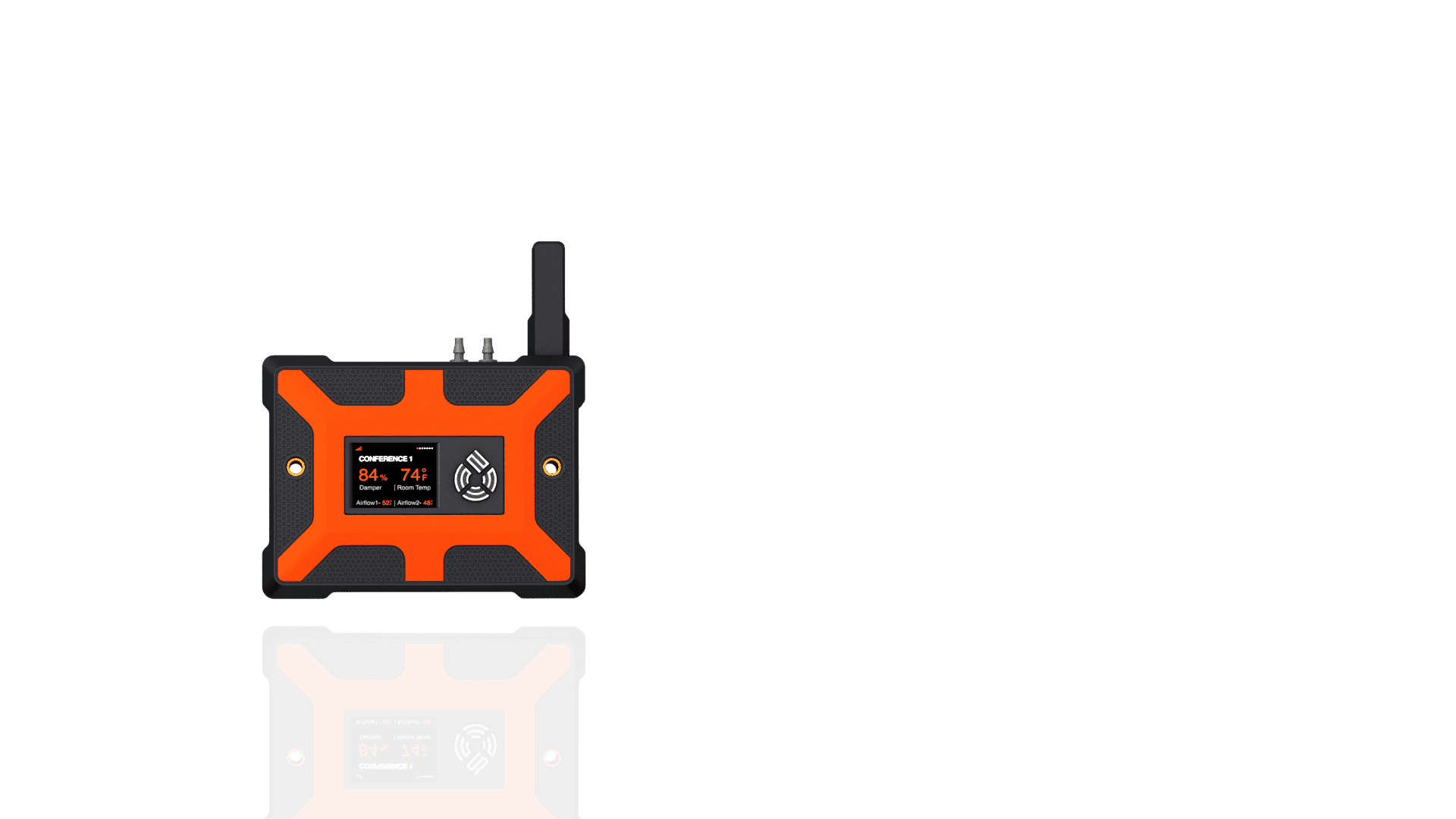

75F® Smart Node™
GO-ANYWHERE TERMINAL BOX CONTROLLER FOR INDIVIDUAL ZONE CONTROL
Field Test & Troubleshoot

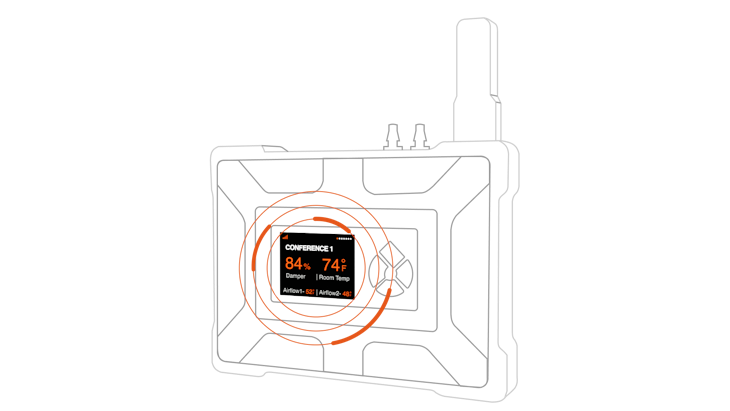

TFT Display
Faster pairing, connecting, testing and troubleshooting means lower costs and more consistent installations, all without voltmeters, programs, application licenses, or laptops.
Field Test & Troubleshoot

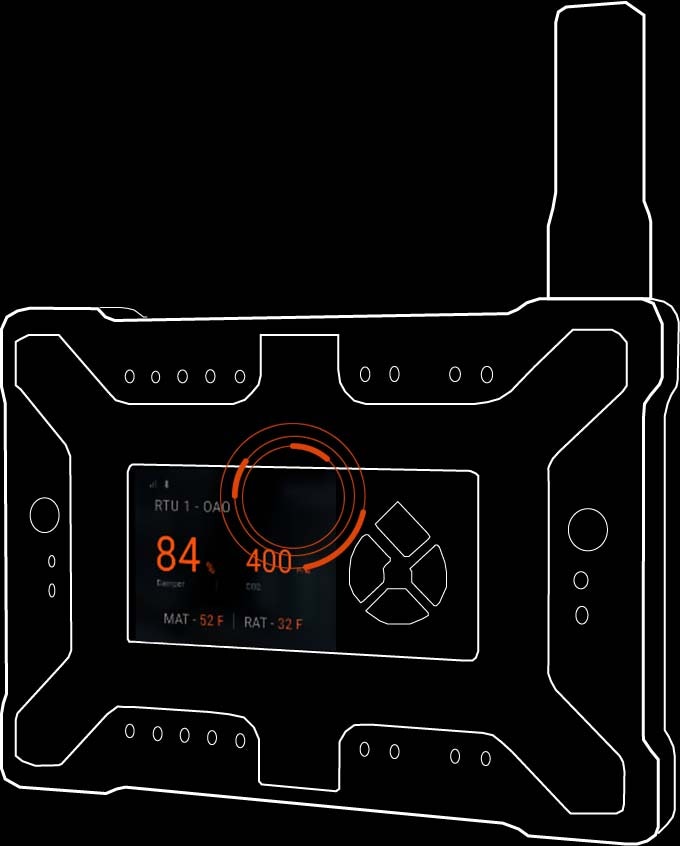

TFT Display
Faster pairing, connecting, testing and troubleshooting means lower costs and more consistent installations, all without voltmeters, programs, application licenses, or laptops.
|
Dimensions |
5.51” x 6.1” x 1.18” (140mm x 155mm x 30mm) |
|
Operating Range |
Humidity 20-85% non-condensing. Temperature 32°F to 122°F (0 to 50°C) |
|
Screen |
TFT |
|
Termination |
Lever, no tool connectors. 3-wire Molex connectors. |
|
Inputs |
(4) 10k thermistor inputs OR (4) 0-10V DC analog inputs |
|
Outputs |
(4) 0-10V DC analog outputs (4) dry contact relays rated at 24V DC |
|
Pollution Grade |
2 |
|
Certification |
UL 60730-1- Automatic Electrical Controls |
|
Bluetooth |
Used during commissioning and wireless sensor integration |
|
Mesh |
IEEE 802.15.4-compliant; 900MHz used for device communication on mesh network |
|
Wired |
RS-485 interface for Modbus or BACnet, 3 pin connector for Sensor Bus. PoR communication with other 75F two-wire Sensors and MySense |
|
Supply |
24V AC/DC input (+/- 15%) |
|
Peak Consumption |
3VA (when no 2 wire sensors are connected). Typical <9VA when the PoR is on full load |
|
Protection |
IP 20, NEMA Type 1 |
