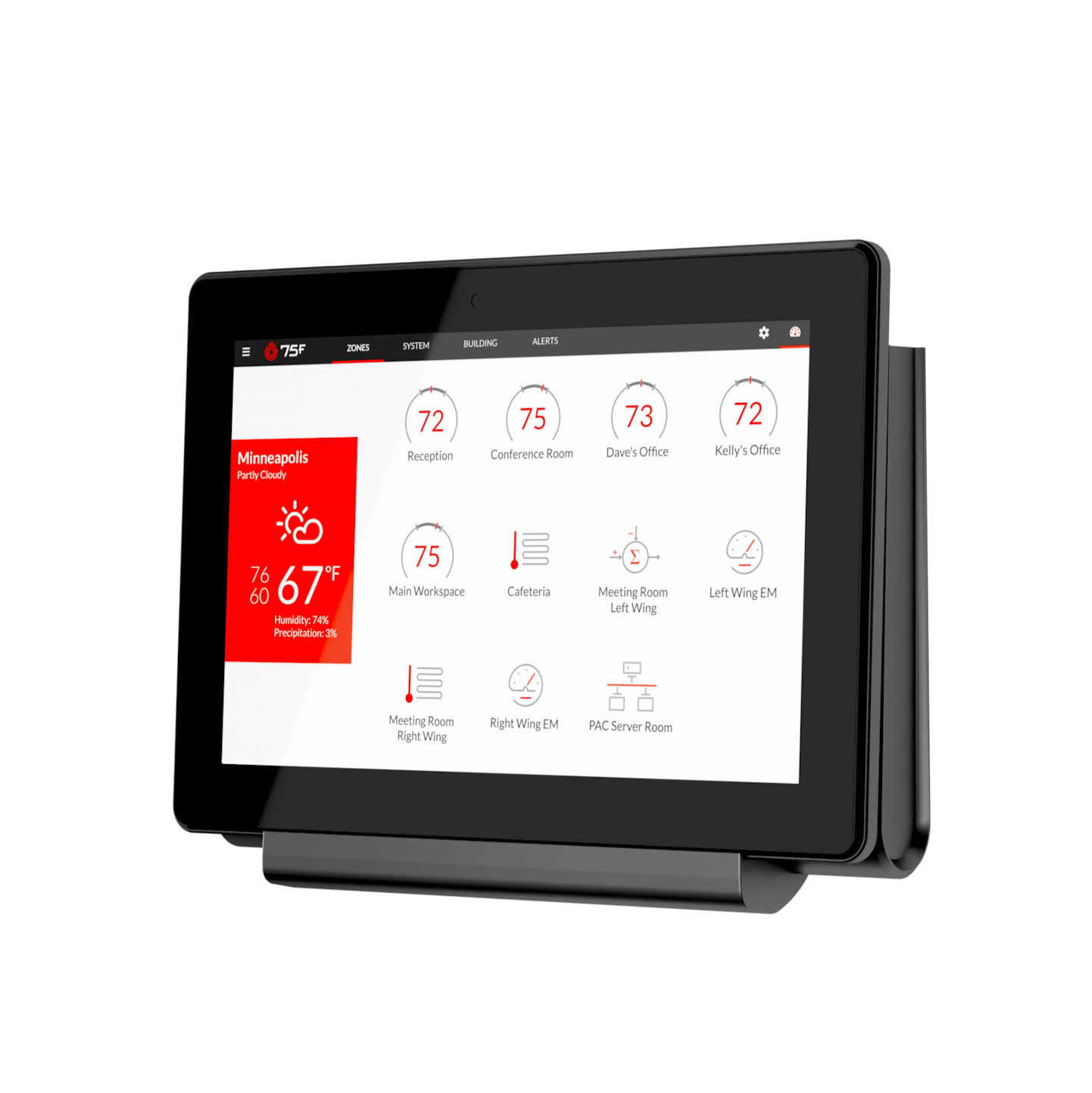

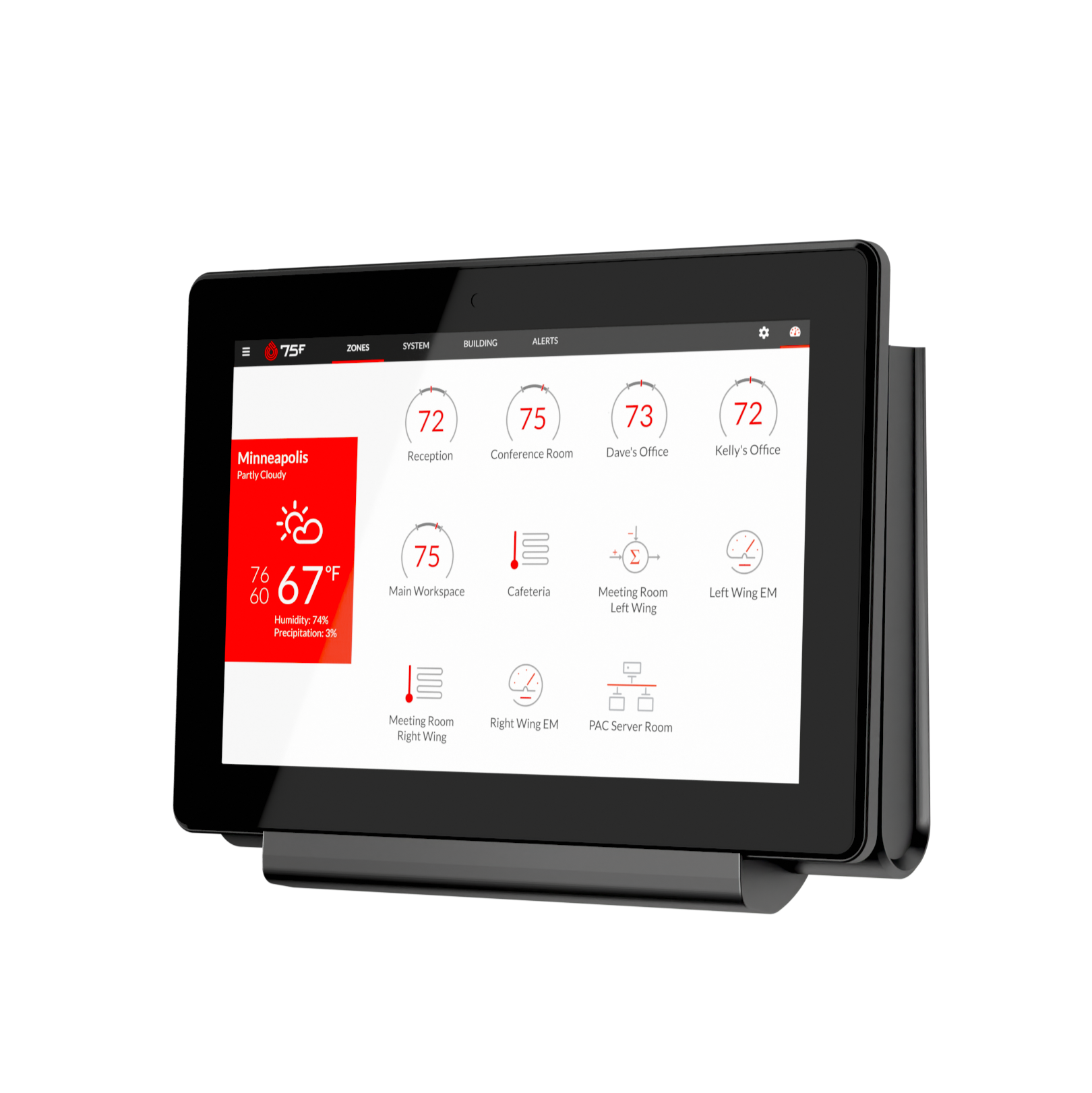

75F® CCU™
A modern and practical head-end workstation for real-time insight and control.
Choose between two powerful options
A Practical Solution for Simple Installs

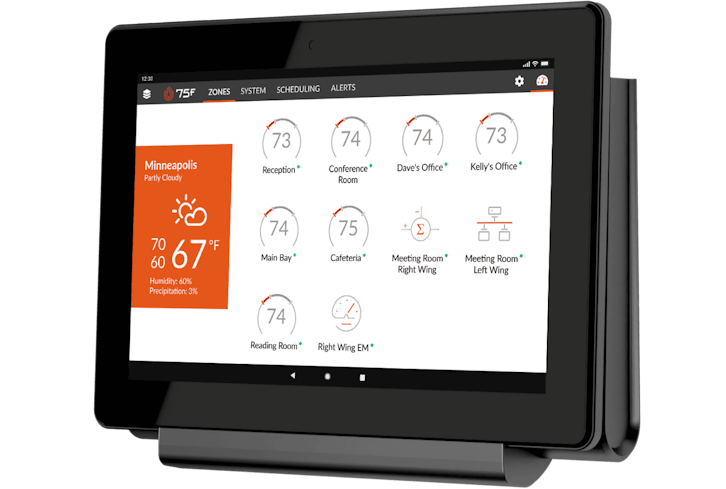

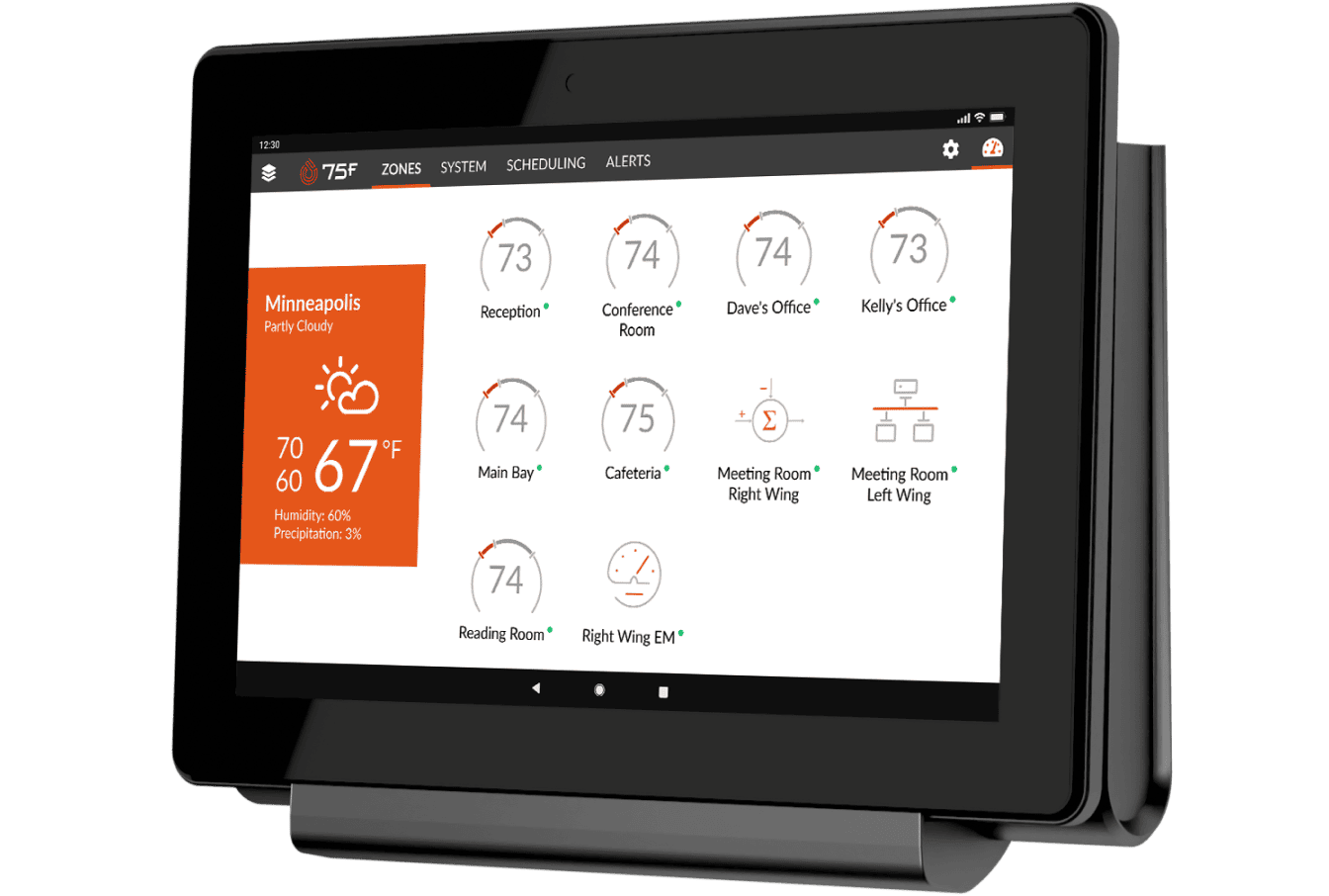

Extra-Rugged Variation with 10x Processing Speeds
AI Inference
The CCU XR runs pre-trained AI models and inference in edge scenarios — linear regression, decision trees, or neural networks.
| Dimensions |
8.25" x 5.5" x 1.5" |
| Mounting | (2) #8 screws over standard electrical junction box |
| Operating Range | 0-50˚C (32-144˚F) |
| Screen | 8" 1200x800 |
| Termination | Common Pogo Pin termination for USB port and +5V DC power |
| Microprocessor | Processor MT8163, quad core, 64-bit, Cortex - A53, 1.3GHZ |
| HVAC Controls | Two-stage heating and cooling, two-stage fan, 0-10V modulating output for VFD, heating/cooling hydronics, one humidifier |
| Inputs |
(2) 0-10V analog inputs |
| Outputs |
(4) 0-10V or 4-20V mA analog outputs |
| Input Voltage | 24VAC/DC |
| Output Voltage | 5VDC |
| Analog Inputs |
0-10VDC |
| Max Power Consumption |
19.5VA |
| Protection |
4,325 mAh - 7 hours active display; weeks in standby |
| Peak Consumption |
5VA (during Smart Damper calibration). Typical <1VA consumption |
| Wi-Fi | Ieee 802.11a/b/g (5GHz and 2.4GHz RF bands) |
| Bluetooth | BLE 4.1 used for pairing devices |
| Mesh | 900 MHz IEEE 802.15.4-compliant for device communication |
| Wired | Sensor bus to Wall Sensor |
| Dimensions |
8.2” x 5.6” x 1.7” (209 mm x 143 mm x 43 mm) |
| Mounting |
(2) #8 screws over standard electrical junction box |
| Operating Range |
32°F to 122°F (0°C to 50°C) |
| Screen |
8” display, 1280 x 800 |
| Termination |
Common Pogo Pin termination for USB port and +5V DC power |
| Microprocessor |
Processor 8 core (4 high performance + 4 low power) |
| HVAC Controls |
Up to 5 stages of heating/cooling, up to 5 fan stages, 0-10V modulating output for heating/cooling valves (no VFD), and a dehumidifier or humidifier |
| Inputs |
(2) 0-10V analog inputs |
| Outputs |
(4) 0-10V or 4-20V mA analog outputs |
| Input Voltage | 24VAC/DC |
| Output Voltage | 5VDC |
| Analog Inputs |
0-10VDC |
| Max Power Consumption |
19.5VA |
| Protection |
4,325 mAh - 7 hours active display; weeks in standby |
| Peak Consumption |
5VA (during Smart Damper calibration). Typical <1VA consumption |
